SNGXRFHD Driver LED aislado 250mA AC100-265V

Descripción

Fuente de alimentación industrial

Detalles del producto:

2-3W LED driver aislado

Input voltage: AC100-265V

Output voltage: DC7-11V

Output current: 250mA 5%

No-load voltage: DC17V

Power factor: 0.55

Size: 26*16*1M 1.02*0.62*0.51 inches

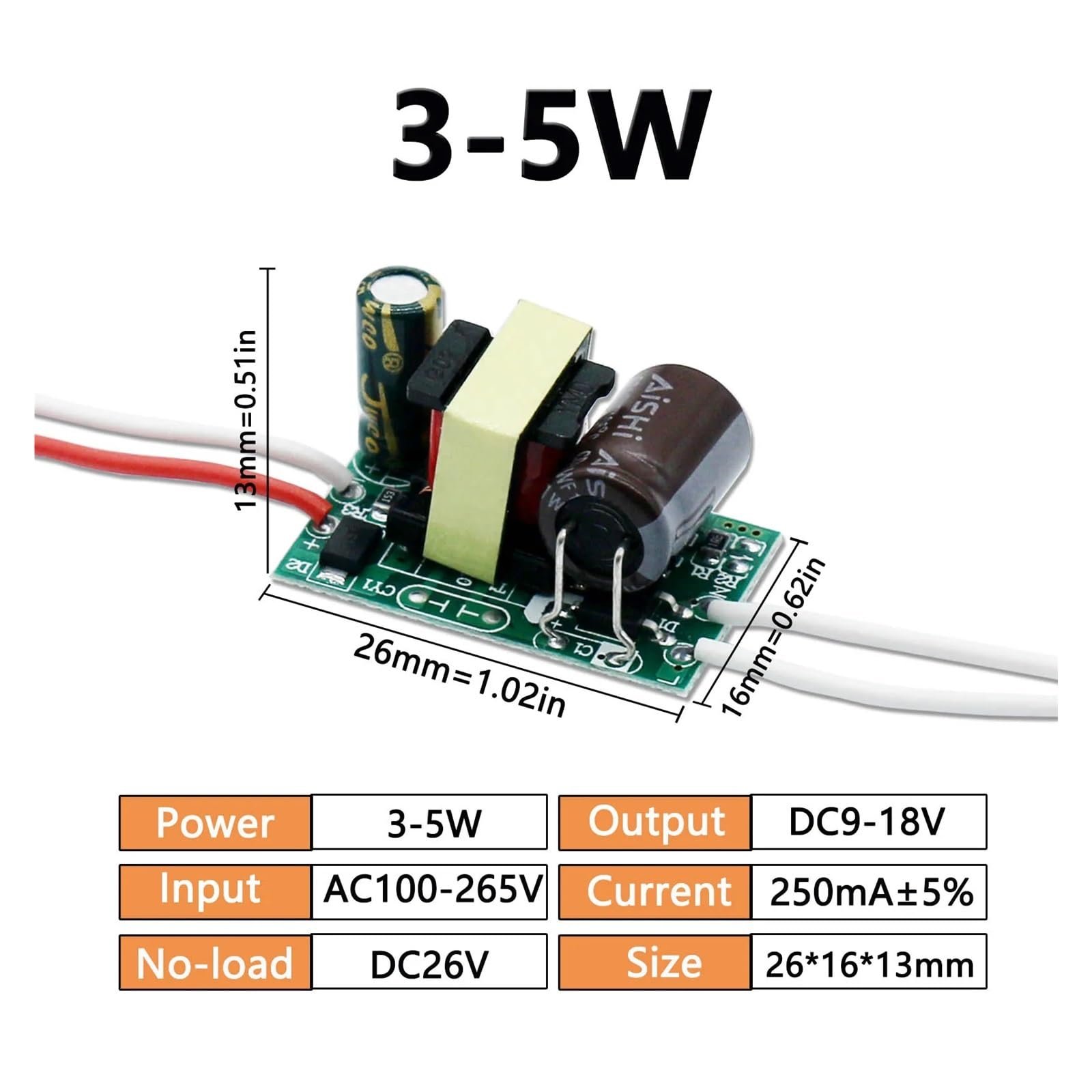

3-5W LED driver aislado

Input voltage: AC100-265V

Output voltage: DC9-18V

Output current: 250mA 5%

No-load voltage: DC26V

Power factor: 0.55

Size: 26*16*1M 1.02*0.62*0.51 inches

4-7W LED driver aislado

Input voltage: AC100-265V

Output voltage: DC15-25V

Output current: 250mA 5%

No-load voltage: DC31V

Power factor: 0.55

Size: 30*15*15MM 1.8*0.59*0.59 inches

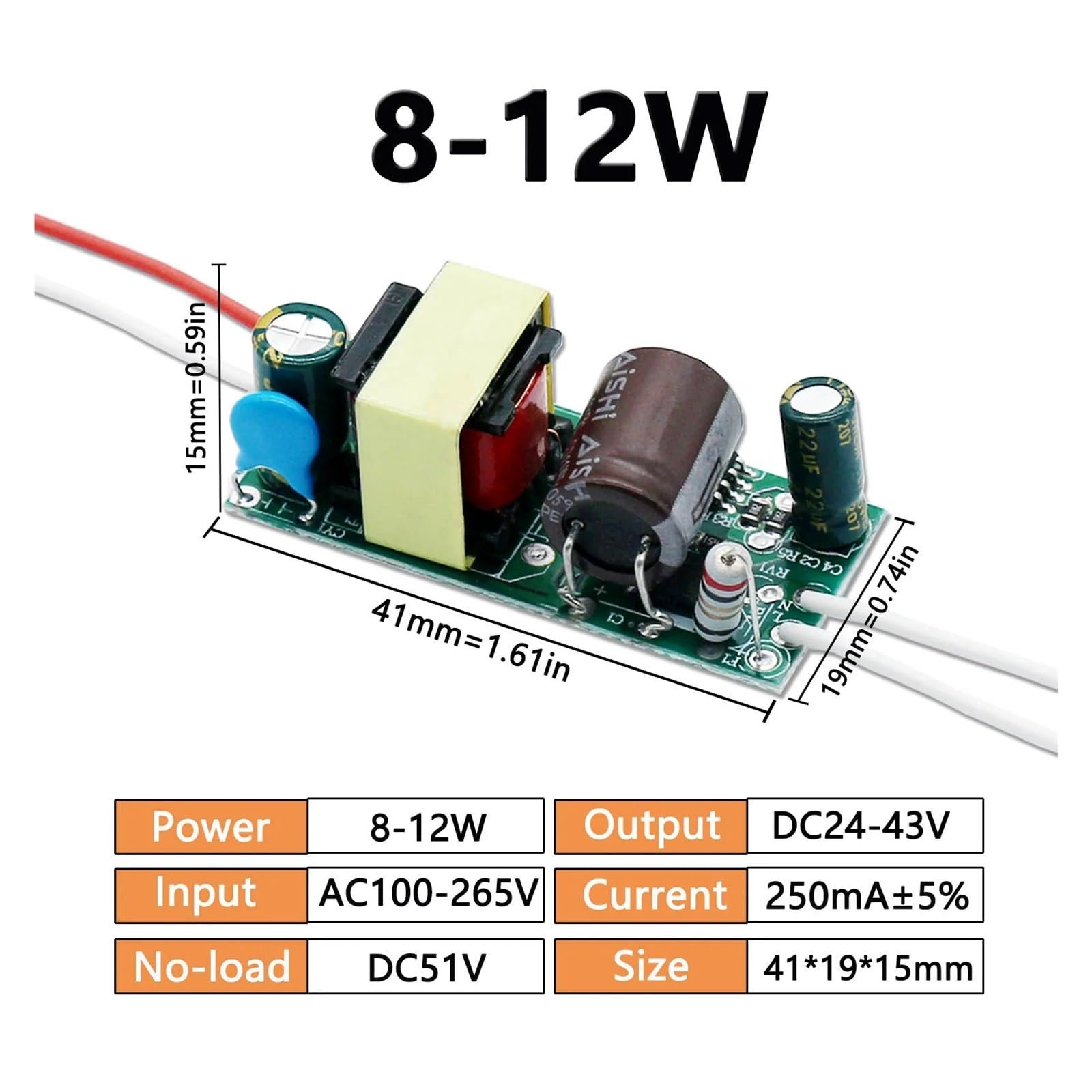

8-12W LED driver aislado

Input voltage: AC100-265V

Output voltage: DC24-43V

Output current: 250mA 5%

No-load voltage: DC51V

Power factor: 0.55

Size: 41*19*15MM 1.61*0.74*0.59 inches

12-18W LED driver aislado

Input voltage: AC100-265V

Output voltage: DC45-65V

Output current: 250mA 5%

No-load voltage: DC100V

Power factor: 0.55

Size: 52*21*17MM 2.04*0.82*0.66 inches

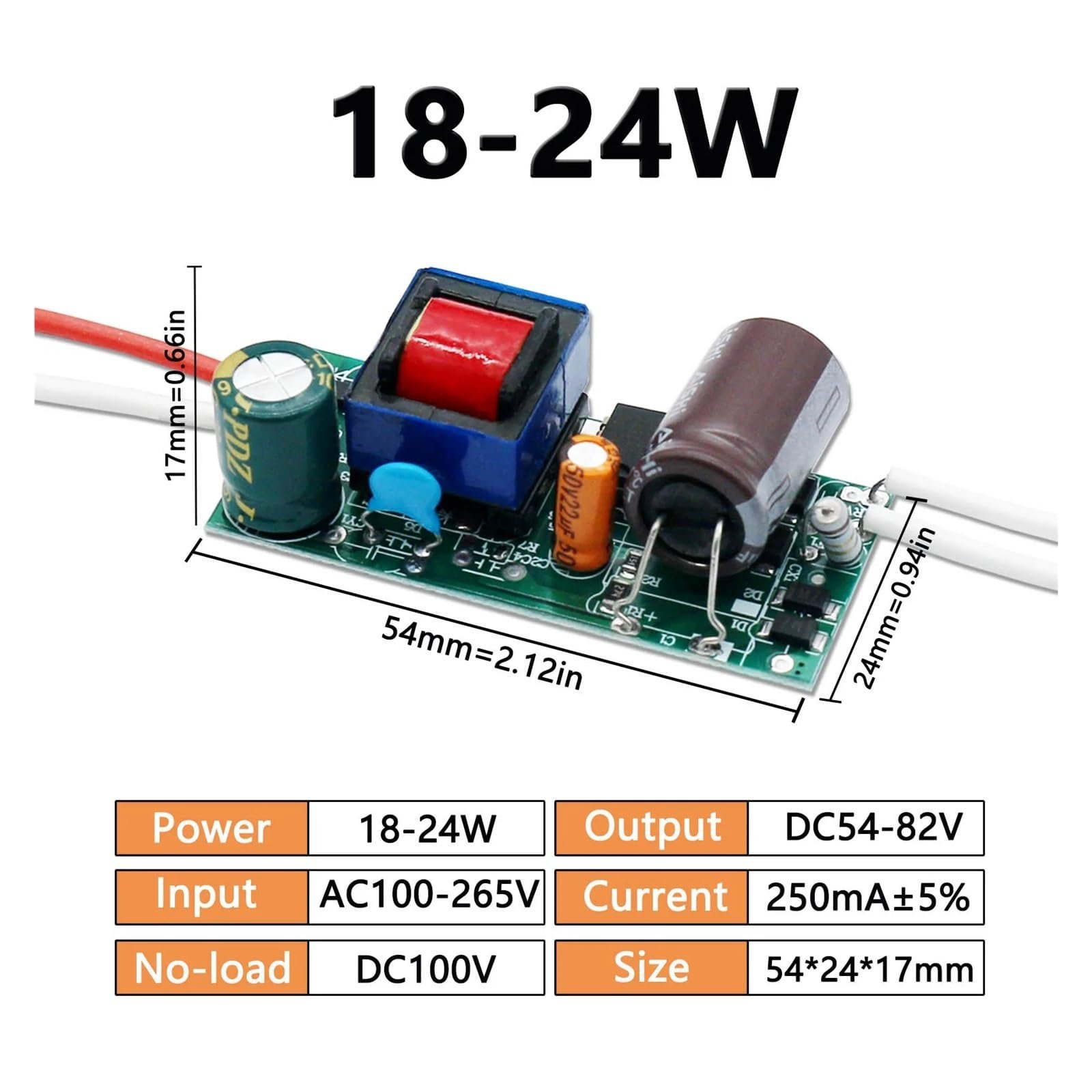

18-24W LED driver aislado

Input voltage: AC100-265V

Output voltage: DC54-82V

Output current: 250mA 5%

No-load voltage: DC100V

Power factor: 0.55

Size: 54*24*17MM 2.12*0.94*0.66 inches

Características:

Fully isolated driver

Peso: 15g

Output signal: DC

Input signal: AC

Output voltage: DC7-11V / DC9-18V / DC15-25V / DC24-43V / DC45-65V / DC54-82V

Input voltage: 100-265V

Material: plastic alloy + smart chip

Tipo de producto: Transformador para iluminación

Especificaciones rápidas:

2-3W output voltage: DC7-11V

3-5W output voltage: DC9-18V

4-7W output voltage: DC15-25V

8-12W output voltage: DC24-43V

12-18W output voltage: DC45-65V

18-24W output voltage: DC54-82V

Output current: 250mA 5%

1. Fuente de alimentación industrial

2. Driver LED aislado AC100-265V 2-3W 3-5W 4-7W 8-12W 12-18W 18-24W, fuente de alimentación de conducción 250mA para lámparas downlight LED, transformador de iluminación DIY
